The universal probes are designed to have a low-profile probe/wedge combination for easier access in restricted areas. A wide selection of wedges is available to suit any angle beam application. These probes are used for manual or automate
The universal probes are designed to have a low-profile probe/wedge combination for easier access in restricted areas. A wide selection of wedges is available to suit any angle beam application. These probes are used for manual or automated inspection of 6.35 mm to 38 mm thick welds and the inspections of castings, forgings, pipes, tubes, and machined and structural components for cracks and welding defects.
Advantages
· Probes are designed to have a low-profile probe/wedge combination for easier access in restricted areas.
· Wave layers with acoustic adaptation to Rexolite
· Captive anchoring screws are provided with the probe.
· A wide selection of wedges is available to suit any angle beam application.
Typical Applications

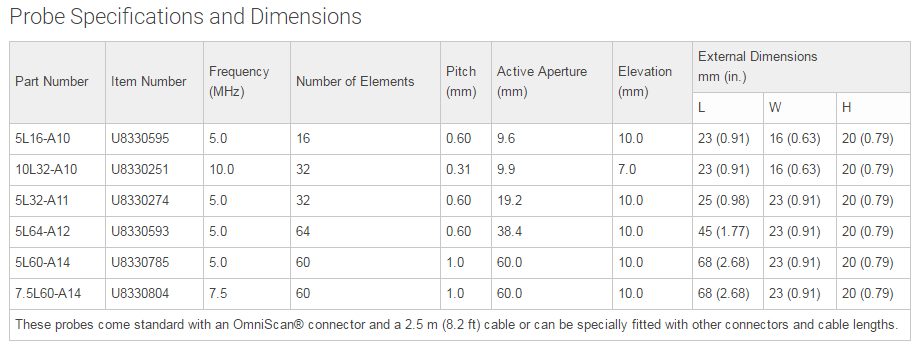

A10, A11, and A12 Probes
· Manual or automated inspection of 6.35 mm to 38 mm (0.25 in. to 1.5 in.) thick welds
· Detection of flaws and sizing
· Inspections of castings, forgings, pipes, tubes, and machined and structural components for cracks and welding defects
